Injection Mold Design Guide

Design Better Plastic Parts for Injection Molding

Use this guide to improve manufacturability, reduce tooling risk, control part cost, and prepare your CAD model for NetProto DFM review and production workflow.

Upload CAD for ReviewView Design Rules

Design guide

Injection molding design rules by topic

50 spoke guides live under /design-guide/. Use the hub to route before you open a single rule page.

Legacy summary tables below remain for quick scan. Spoke pages carry checklists and quote context per topic.

Molded part with draft-friendly ribs and steel mold insert for design guide hub, studio photo.

Featured

Start here

Open the article or the first spoke you need on this program.

Design guide spokes

Walls and stiffness

Published or draft spokes from CMS.

Design guide spokes

Release, snaps, and undercuts

Published or draft spokes from CMS.

Lifters

DFM rules for lifters.

Lifters

Design guide spokes

Inserts, threads, and fasteners

Published or draft spokes from CMS.

Design guide spokes

Tolerances and GD&T

Published or draft spokes from CMS.

Design guide spokes

Fill, gates, and runners

Published or draft spokes from CMS.

Venting

DFM rules for venting.

Venting

Design guide spokes

Parting, ejection, and mold action

Published or draft spokes from CMS.

Design guide spokes

Surface, marking, and holes

Published or draft spokes from CMS.

Design guide spokes

Fill ratios and knit lines

Published or draft spokes from CMS.

Design guide spokes

Programs and conversion

Published or draft spokes from CMS.

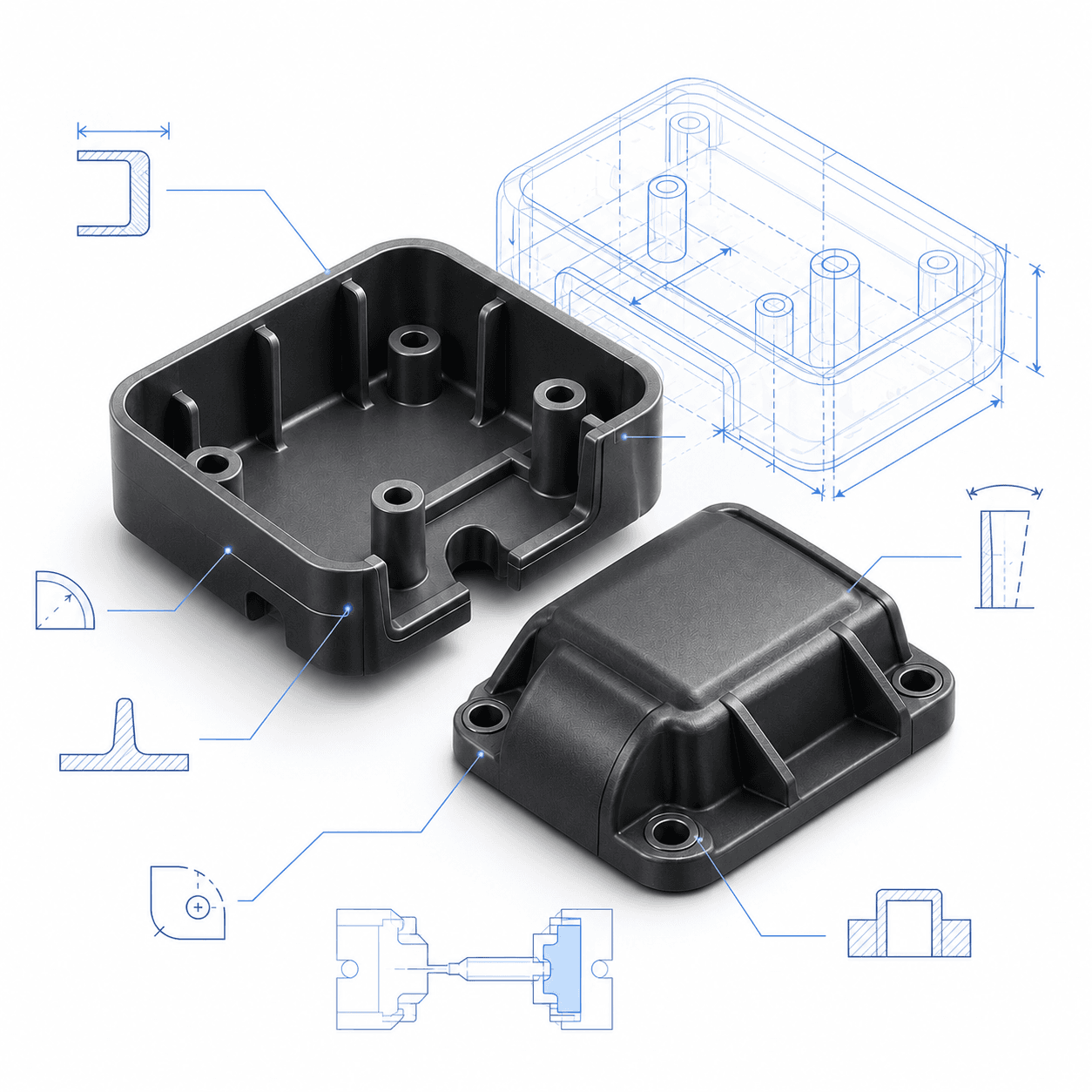

Core Design Rules

Injection molding design considerations

Each topic below helps customers understand the idea faster. These are general guidelines; final requirements depend on part geometry, material, size, cosmetic expectations, tooling strategy, and production volume.

1. Maintain consistent wall thickness

Uniform wall thickness helps plastic flow evenly and cool consistently. Large thickness changes can create sink marks, voids, warpage, and longer cycle times.

Thick
Recommended
  • Keep walls as uniform as possible.
  • Use gradual transitions if thickness changes are necessary.
  • Use ribs instead of thick solid sections for strength.
Avoid
  • Thick blocks of plastic behind cosmetic surfaces.
  • Sharp thickness transitions.
  • Walls that are so thin they may not fill reliably.

2. Add draft to vertical walls

Draft helps the part release from the mold without dragging, scuffing, or sticking. Textured surfaces and deeper walls usually require more draft.

ribs
Recommended
  • Add draft in the mold opening direction.
  • Use more draft for textured or cosmetic surfaces.
  • Confirm pull direction before finalizing the design.
Avoid
  • Zero-draft walls on deep features.
  • Texture without extra draft.
  • Late pull-direction changes after mold design.

3. Use ribs and gussets for strength

Ribs can increase stiffness without creating large thick sections. Good rib design balances strength, filling, cooling, and cosmetic appearance.

ribs
Recommended
  • Use ribs to reinforce thin walls and flat panels.
  • Add draft to ribs for easy mold release.
  • Use radii where ribs meet the base wall.
Avoid
  • Ribs that are too thick relative to the wall.
  • Sharp rib bases that create stress concentration.
  • Dense rib patterns that trap air or complicate filling.

4. Design bosses and screw posts carefully

Bosses are used for screws, inserts, alignment, and assembly. Poor boss design can cause sink marks, cracking, weak threads, or ejection problems.

boss
Recommended
  • Core out bosses instead of making them solid.
  • Support tall bosses with ribs or gussets.
  • Review screw type, insert type, and assembly load.
Avoid
  • Solid posts behind visible surfaces.
  • Very tall unsupported bosses.
  • Bosses too close to thin walls or edges.

5. Add radii to corners and transitions

Rounded corners improve material flow, reduce stress concentration, and help parts release from the mold. Internal corners are especially important.

round
Recommended
  • Use generous internal radii where possible.
  • Round transitions between walls, ribs, and bosses.
  • Use consistent radii to improve flow and tooling quality.
Avoid
  • Sharp inside corners in load-bearing areas.
  • Unnecessary sharp cosmetic edges.
  • Abrupt corner transitions on thin features.

6. Minimize undercuts when possible

Undercuts may require slides, lifters, hand-loaded inserts, or secondary operations. These features can increase mold cost, lead time, and maintenance risk.

sidepull
Recommended
  • Design features in the main mold-open direction where possible.
  • Use shutoffs or design changes to avoid side actions.
  • Identify snap fits, clips, and side holes early.
Avoid
  • Hidden undercuts discovered after quote approval.
  • Side actions for features that can be redesigned.
  • Complex clips without DFM review.

7. Plan gate location and parting line early

Gate and parting line decisions affect mold construction, filling, cosmetic surfaces, weld lines, trimming marks, and dimensional control.

partingline
Recommended
  • Identify cosmetic and non-cosmetic surfaces.
  • Allow a reasonable gate vestige on non-critical areas.
  • Review parting line visibility and shutoff surfaces.
Avoid
  • Requiring no gate mark without discussing tooling options.
  • Critical cosmetic surfaces near unavoidable flow marks.
  • Parting lines through sealing or high-precision features.

8. Use practical molded-part tolerances

Injection molded parts are affected by material shrinkage, part size, tool construction, processing, and measurement method. Tight tolerances often increase cost and risk.

dimension
Recommended
  • Identify only truly critical dimensions as tight-tolerance features.
  • Use commercial tolerances for non-critical dimensions.
  • Define datum and inspection method for critical areas.
Avoid
  • Applying tight tolerances to every dimension.
  • Using only CAD nominal values without tolerance notes.
  • Critical assembly fits without functional requirements.

9. Select material based on function and molding behavior

Material affects strength, flexibility, shrinkage, surface finish, temperature resistance, flame rating, chemical resistance, and tooling assumptions.

materialneed
Recommended
  • Specify resin family, grade, color, and additives when known.
  • Share use environment, load, temperature, and compliance needs.
  • Consider shrinkage and cosmetic expectations during design.
Avoid
  • Choosing material only by price.
  • Changing material after mold design without review.
  • Missing UV, flame, food-contact, or chemical requirements.

Quick Reference

Common design guideline summary

Use this table as a starting point before uploading your CAD file. NetProto will review project-specific risks during DFM.

Design areaRecommended approachRisk if ignored
Wall thicknessKeep walls consistent and use gradual transitions.Sink, voids, warpage, long cycle time.
DraftAdd draft to molded walls, especially deep or textured surfaces.Sticking, drag marks, ejection damage.
RibsUse ribs for stiffness instead of thick solid sections.Sink marks, cosmetic defects, stress concentration.
BossesCore out bosses and support tall posts with ribs.Cracking, weak assembly, sink, difficult molding.
UndercutsReduce or redesign undercuts where possible.Higher mold cost, side actions, longer lead time.
TolerancesApply tight tolerances only to critical dimensions.Higher cost, inspection complexity, production risk.
