Ejection design balances release force with pin witness on cosmetic and flat surfaces.
DFM
Pins, sleeves, and stripper plates push on hidden faces when possible.
Ejection happens while the part is still warm and flexible. Uneven push warps flat covers.
Deep cores need sufficient ejector area or air assist to avoid vacuum hold.
Robot grip points can replace some pin marks when automation is in scope.
DFM
NetProto DFM review flags these geometry patterns before steel is ordered.

Ejection
These notes reduce pin marks on Class A.
Hidden faces acceptable for pin witness
Flat regions that need uniform ejection support
Deep core pockets that may need vent or air pop
Texture faces where pin polish marks are unacceptable
Related rules
Jump to sibling rules before you freeze CAD.
All DFM topics on one route.
Design guide hubLong form engineer guide.
DFM articlePin layout detail.
Ejector pin placementRelease before ejection force.
Draft angleShared term.
Ejector pin glossaryVisual reference
Images from the Forge media library illustrate typical programs.

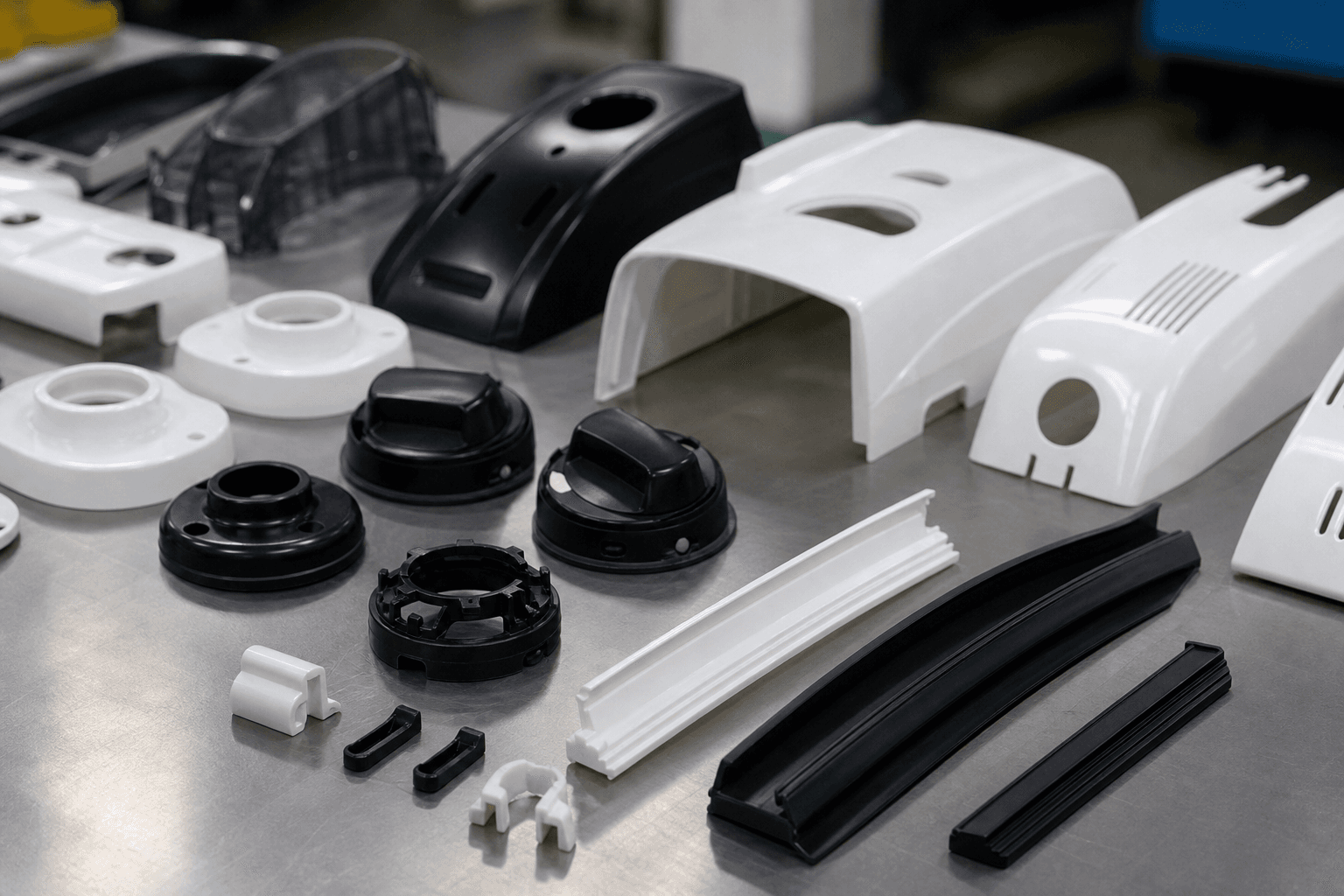

Injection molded part design review on CAD
