What is family molding? | NetProto
Family mold strategy for multiple different but related parts

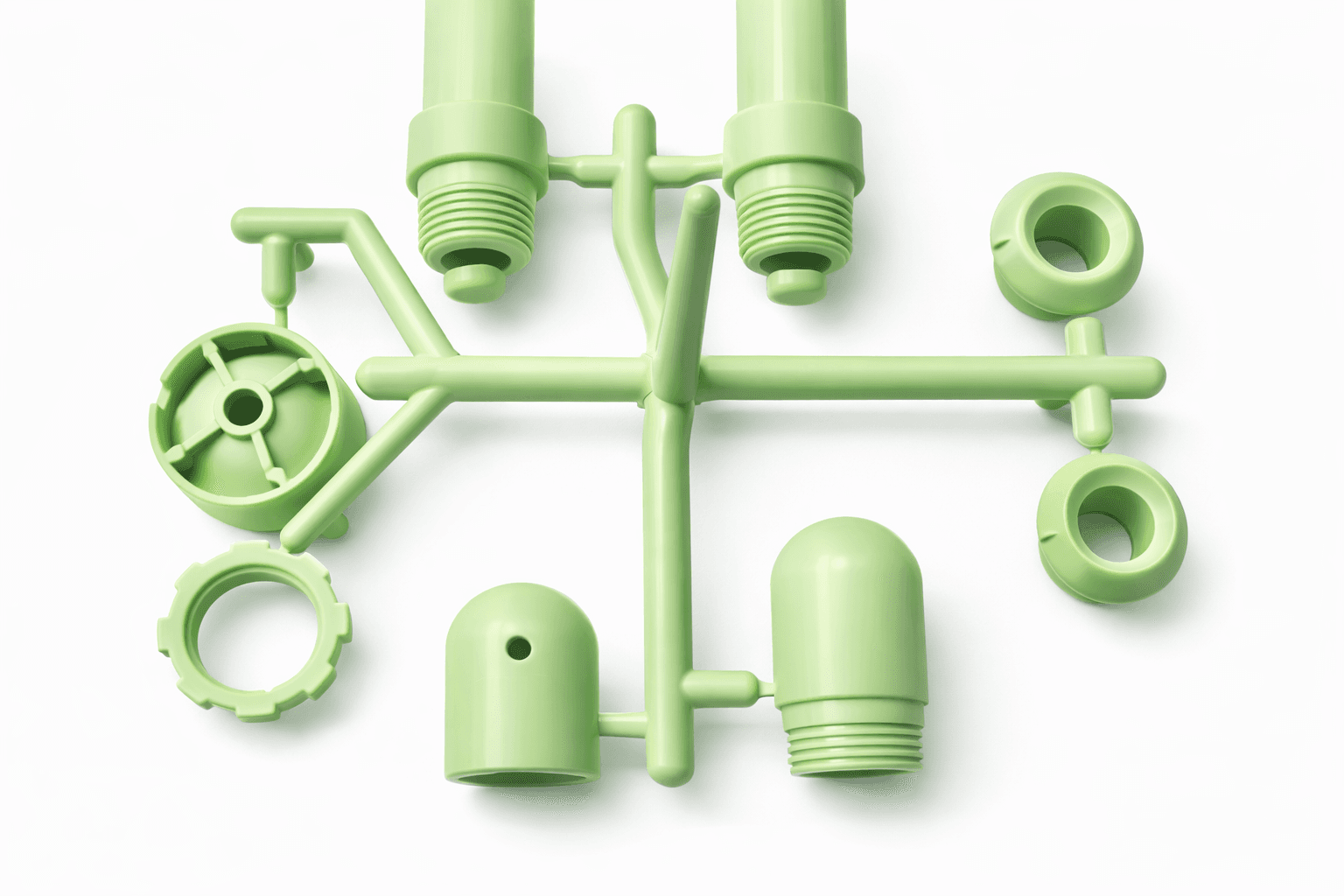

A family mold is an injection mold that produces more than one different part in the same cycle. Unlike a multi-cavity mold, which typically repeats the same part multiple times, a family mold combines parts that share compatible material, shrink, cosmetic expectation, and process conditions. Common examples include left and right enclosures, mating covers, accessory sets, cap-and-body combinations, and other parts designed to launch together. When used correctly, family molds can lower overall tool count and streamline production.
- 1 tool for multiple related parts when the program is a good fit
- Fewer SKUs to manage during initial tooling launch and engineering review
- Lower overhead than building separate molds for every compatible component
- Better coordination for assemblies and matched production part sets
Family Injection Molding Solutions | NetProto
Unlock Efficiency with Family Injection Molding
NetProto's family injection molding consolidates compatible parts into a single tool program, minimizing tooling duplication and enhancing production efficiency for part families and assemblies.
- 1
Lower Tooling Duplication
Instead of cutting separate molds for each small companion part, compatible components can be evaluated together under one tool strategy.
- 2
Coordinated Assembly Launch
Family molding is essential when multiple parts are consistently needed together, aiding in reducing launch friction for kits, housings, and assemblies.
- 3
Better Initial Economics
For the right part family, a single tool platform can lower upfront tooling costs compared to constructing several standalone molds.
- 4
Shared Project Control
NetProto ensures DFM, revisions, approvals, and production tracking are aligned around one coordinated mold program.
- 5
Helpful for Lower-Volume Companion Parts
When certain related parts do not warrant their own dedicated mold, family tooling can enhance the cost structure of the overall program.
- 6
Good for Product-Line Consolidation
Parts designed around the same resin and similar molding window can often be grouped into a more efficient long-term tool plan.
Family Injection Molding Feasibility | NetProto
It is not just “can these parts fit in one tool?”
NetProto's family injection molding integrates compatible parts into a unified tool program, enhancing production efficiency while minimizing tooling costs and launch complexities.
- 1
Part Compatibility Review
Assess resin compatibility, shrink rates, and wall behavior to ensure optimal fit for family molding.
- 2
Flow and Balance Analysis
Evaluate runner layout, fill patterns, pressure demands, and gate locations to ensure efficient production across all cavities.
- 3
Business Fit Assessment
Analyze annual volume, reorder behavior, and the impact of one part on the entire family to determine tooling flexibility.
Family Injection Molding Good Fit ot Not | NetProto
When Family Molds Work Best — and When They Don’t
Family molds work best when related parts use the same material, have similar processing conditions, compatible shrink behavior, and are usually ordered together. When parts have very different volumes, cosmetic requirements, tolerances, or design revision needs, separate molds may be the better choice for process control, maintenance, and long-term flexibility.
When family molds work best
- Left-right parts used as a pair
- Cover and base combinations
- Matched enclosure sets and accessory kits
- Small companion components with similar resin and finish requirements
- Programs where all molded parts are commonly ordered together
When separate tools may be better
- Very different part volumes inside the same family
- Different cosmetic requirements or critical tolerances
- Large part size imbalance or very different wall sections
- Programs likely to change one part frequently without changing the others
- High-volume production where dedicated tools improve throughput and control
Design and manufacturing guidance | Netproto
Key considerations before moving forward with a family mold
These are the practical issues buyers and engineers should align on early, especially before assuming that one family tool will outperform multiple simpler tools.
| Topic | What to evaluate | Why it matters |
|---|---|---|
| Material compatibility | All cavities should run with the same resin family and compatible molding window. | A shared process is required across the full mold cycle. Different resin behavior can destabilize the whole tool. |
| Volume balance | Forecast how often each part will actually be needed together over the life of the program. | If demand varies too much by part, one cavity may create inventory imbalance or unnecessary overproduction. |
| Fill balance | Runner layout, gate sizing, and cavity loading must support consistent filling across different parts. | Poor balance can create quality variation, short shots, or process instability. |
| Part revision risk | Consider whether one part may change more often than the others. | One revision can affect the shared tool strategy and reduce long-term flexibility. |
| Cosmetic and tolerance fit | Check whether all parts can accept similar finish quality and process variation. | A family tool should not force unlike quality requirements into one compromise process window. |
| Lifecycle economics | Compare upfront tooling savings against future maintenance, revision, and production constraints. | The cheapest initial tool is not always the best long-term production strategy. |
Ready to quote
Need pricing for family injection molding?
Start with the quote workflow so engineering review, commercial alignment, and production planning begin in the same system.
Questions customers ask
Family mold questions buyers usually ask
What is the difference between a family mold and a multi-cavity mold?
AdA multi-cavity mold usually makes the same part multiple times per cycle. A family mold makes different but related parts in one tool.d the answer here.
Does family molding always save money?
Not always. It can reduce upfront tooling duplication, but the long-term value depends on demand balance, part similarity, revisions, and production behavior.e answer here.
Can any related parts be combined into one family mold?
No. Parts should have compatible resin, shrink, process requirements, and practical business logic. Shared use alone is not enough.
What is the biggest risk with family molds?
One of the biggest risks is compromise: different parts may want different process conditions, quantities, or future changes, which can reduce efficiency over time.
How does NetProto decide whether a family mold makes sense?
e review geometry, resin, shrink, gating strategy, volume mix, cosmetic expectations, and lifecycle needs before recommending a tooling direction.
