Two Shot Injection Molding

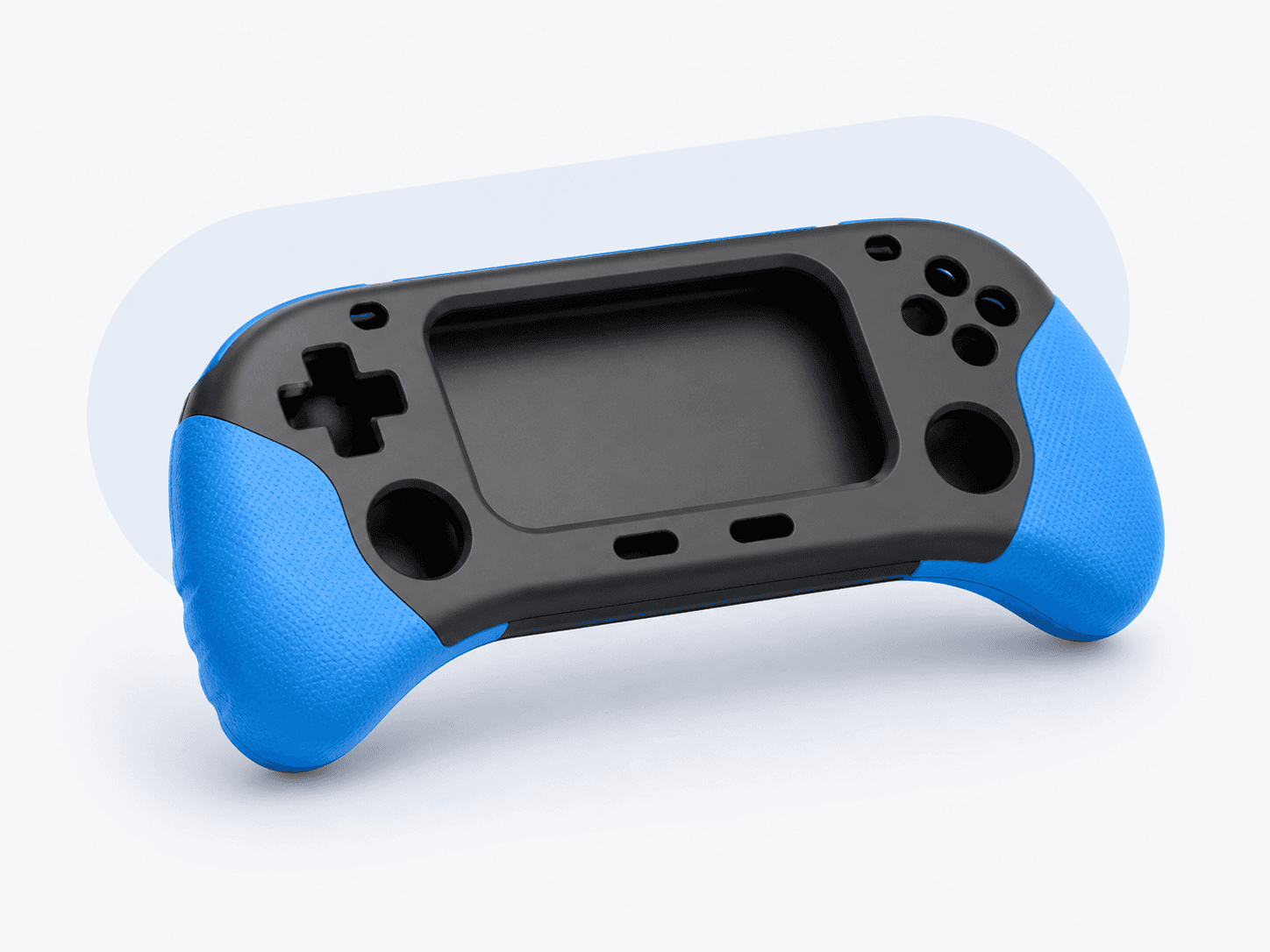

A two shot part leaves the press finished: the rigid body and the soft grip, or the clear window and the dark bezel, molded in the same cycle. Here is what the press and the tool do between the two shots, and which material pairs actually stick.
What it is
One press, two barrels, one finished part per cycle
Also sold as 2K or double shot molding. The second material goes onto a first shot that never left the mold.
A two shot press carries two injection units. The first unit fills a set of cavities with the substrate. The mold opens, the half holding those parts turns or shifts to a second set of cavities, and the second unit shoots the other material onto them. Meanwhile the first unit is already filling the next substrate. Once the process is dialed in, every time the mold opens, a finished two material part drops out.
That is the whole appeal. Overmolding in two separate tools makes the same kind of part, but somebody, or a robot, has to carry each substrate from the first mold to the second. Two shot removes that step. In exchange you get a more complicated tool, a press that plenty of molders do not own, and a longer development phase before the first good parts.
NetProto quotes two material parts as overmolding or insert molding programs in hardened steel tools. If your part looks like a two shot job, this page should help you judge whether it truly needs one. The quote review will then tell you whether an overmold program gets you the same part.
The cycle
What happens between the first shot and the second
Details vary by press and tool. The sequence below is the common rotary version.
- 1
First shot fills
The first injection unit fills the substrate cavities. This is usually the rigid material, and usually the one that runs hotter, so the second shot will not soften it.
- 2
Mold opens, parts stay put
The substrates are not ejected. They stay on the moving half, and the steel they sit on becomes one side of the cavity for the second shot.
- 3
Transfer to the second station
A rotary platen or an index plate carries the substrates to the second cavity set. On a core back tool, a core pulls back instead and the part never moves.
- 4
Second shot bonds
The second unit injects onto a substrate that is still warm. Heat and pressure at the interface are what make a chemical bond possible, which is why two shot bonds often beat a cold substrate loaded into a separate tool.
- 5
Eject and repeat
The finished part ejects from the second station while the first station holds the next substrate. Both shots share one cycle, so the slower shot sets the pace.
Material pairs
Which pairs bond, and which need a mechanical lock
General material behavior. Bonding grades are specific: a TPE sold as bonding to ABS may do nothing on nylon. Name both grades on the quote.
| First shot | Second shot | What to expect |
|---|---|---|
| PC or PC/ABS | TPE or TPU grades made to bond to PC | A good chemical bond when the grades are matched. Common on handheld device grips. |
| ABS | ABS bonding TPE grades | Reliable with matched grades. Seen on consumer housings and tool grips. |
| Polypropylene | PP based TPE or TPV | Bonds well because both sides share a polypropylene base. The usual pair for toothbrush and razor handles. |
| Nylon (PA6, PA66) | Nylon bonding TPE grades | Workable, but moisture in the nylon weakens the bond. Plan on drying and on peel testing samples. |
| Acetal (POM) | Most TPEs | Almost no adhesion. Use through holes, undercuts, or a wrap around edge so the soft material is held mechanically. |
| Clear PC or PMMA | An opaque rigid grade of the same family | Used for light windows and backlit symbols. The bond is strong because the two resins are the same or close. |
Bond lines
Where the two materials meet is a cosmetic decision
Every edge between the materials is a shutoff in steel. On a visible part, those edges are the first thing a customer looks at.
- End the soft material in a groove or a step on the substrate, not flush on a flat face where any flash will show
- Give the second material enough section at its edges to fill before it freezes
- Keep the second shot gate off the show face. On a grip it often ends up underneath, where the hand hides it
- Shutoff edges wear over the life of the tool. Put them on the maintenance plan from the start
Rigid two color
Half of two shot work has no soft material at all
Soft grips get the attention. Plenty of two shot parts are two hard plastics.
Double shot keycaps mold the legend as one shot and the cap around it as the other. The letter runs through the wall, so it cannot wear off the way a printed legend does after a few years of typing. Backlit buttons in cars and appliances use the same trick with a clear shot and an opaque shot, so light only gets out through the symbol.
Bonding is rarely the worry on these parts, since both resins come from the same family. Registration is. The second shot has to land on the first in the same place, cycle after cycle, or the symbol looks off center. That puts the burden on how accurately the tool transfers the part between stations.
Fit check
Signs a part really wants two shot
If most of these are false, an overmolded part from two simpler tools is usually the better place to start.
Volume is high and steady enough to pay back a more complex tool
The two materials share one continuous surface. A separate soft pad that clips on would not do
Moving a loose substrate between two tools would mark it, bend it, or add handling you cannot absorb
The design is frozen. A change to either shot usually means changes on both halves of the tool
Both materials are chosen, and the grades are known to bond or the design locks them mechanically
The part is small enough that doubling the cavity sets still gives a practical mold size
Keep reading
Related guides
The route decision, the design rules, and the machine side of two material molding.
Two shot part design
Bond surfaces and shutoffs to settle before steel.
Two shot part designOvermolding
Soft grips and seals molded over a rigid part in a second tool.
OvermoldingRotary platen molding
How the tool carries the first shot to the second station.
Rotary platen moldingCore back molding
Two materials in one cavity by pulling a core back.
Core back moldingMulti shot molding
When a third material earns its place in the tool.
Multi shot moldingTPE
The soft second shot on most grips, and how grades differ.
TPEKeycaps
Stems, legends, and double shot caps.
KeycapsProcesses hub
Every molding process and secondary operation.
Processes hubFAQ
Questions about two shot molding
Is two shot molding the same as overmolding?
Both give you a part made of two materials. In overmolding the substrate is molded, taken out, and loaded into a second tool by hand or by robot. In two shot, both materials are molded in one tool on one press, in the same cycle.
Is a two shot bond always stronger?
Usually stronger than a cold substrate, because the second shot meets a warm surface. It still comes down to the resin pair. If the pair does not bond, neither process will make it stick, and the design needs a mechanical lock.
Can we start with overmolding and move to two shot later?
Many programs do. The part geometry often carries over. The tools do not, so treat the switch as a new tooling project rather than a modification.
What should we send to quote a two material part?
CAD with each material as its own body, the grades you are considering for both, the faces that must bond, and annual volume. Mark any cosmetic face where a gate or shutoff line cannot go.
