Manufacturing Standards for Controlled Production Planning
Establishing clear standards for files, materials, tolerances, inspections, and confirmations ensures alignment between customers and NetProto before tooling and production commence.

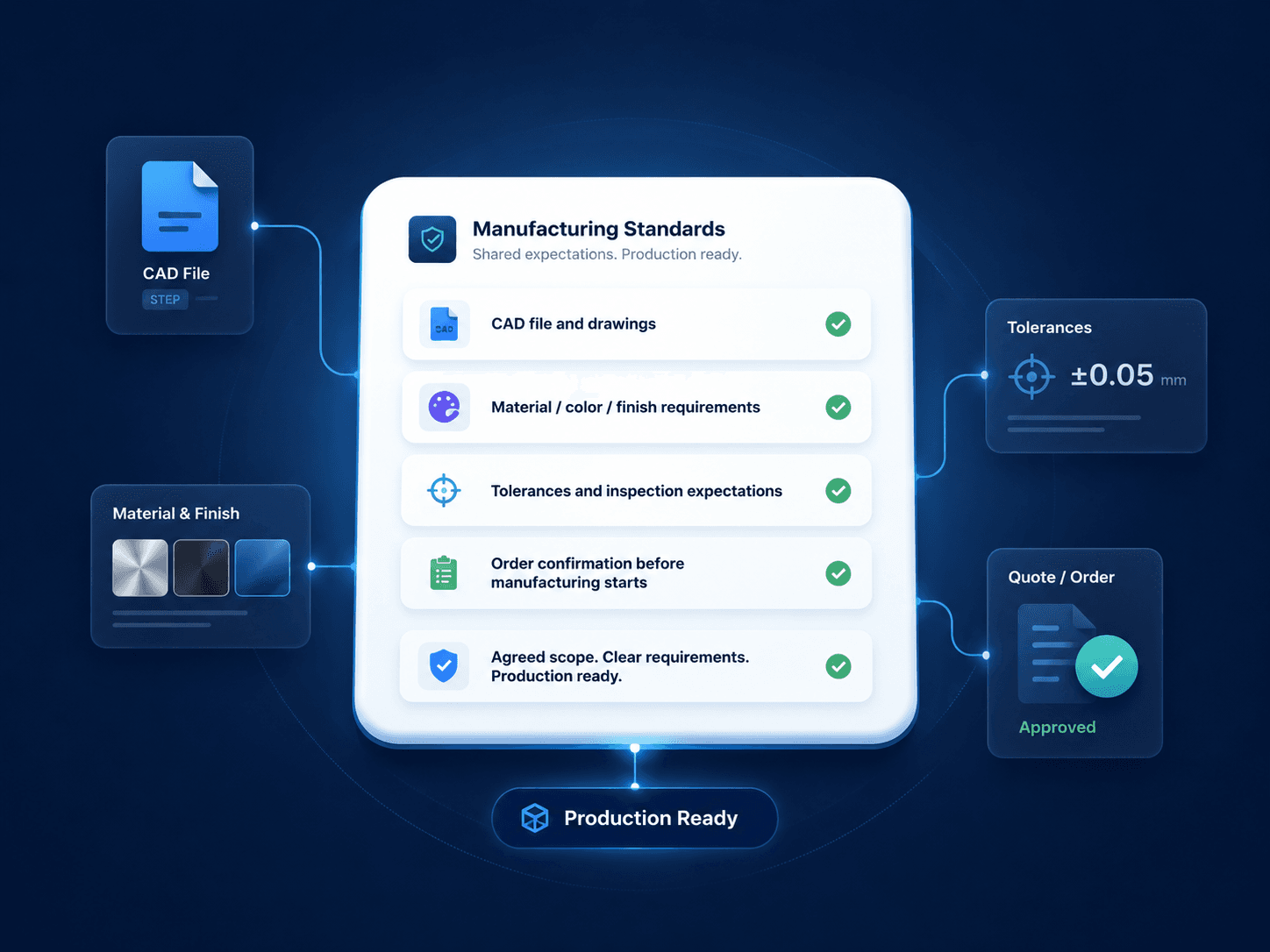

Understanding Manufacturing Standards
Clarifying Manufacturing Standards for Production Success
Manufacturing standards ensure clarity on product specifications, review processes, and critical requirements before production begins.
| Standard area | Customer should provide | Why it matters |
|---|---|---|
| CAD and drawings | Current CAD file, drawings, revision level, critical notes. | Prevents manufacturing from using an outdated or incomplete design reference. |
| Material and color | Resin, grade if required, color, additives, and any certification needs. | Material affects shrinkage, performance, finish, cost, and availability. |
| Finish and cosmetics | SPI, VDI, MT, texture, polish, sample, or appearance expectation. | Finish can affect mold work, draft, visible defects, and customer acceptance. |
| Tolerances | Critical dimensions, inspection points, and functional requirements. | Not every dimension needs tight control; critical features should be identified. |
| Order confirmation | Confirmed quote, delivery address, shipping method, terms review, and order approval. | Helps prevent production from starting with unclear commercial or technical scope. |
Tolerance Guidelines
Typical commercial injection molding tolerances
NetProto follows standard commercial injection molding tolerances unless tighter tolerances are specified and approved in writing. The table is a general reference for non-critical dimensions. Actual achievable tolerances may vary by material, part geometry, wall thickness, shrinkage, mold design, gate location, warpage risk, and inspection method.
Critical dimensions should be shown on a 2D drawing or inspection plan. Snap fits, threads, sealing surfaces, and assembly interfaces should be reviewed before tooling begins. Tighter tolerances may require engineering review, tooling adjustment, process validation, or additional inspection cost.
| Nominal Dimension | Typical Commercial Tolerance |
|---|---|
| 0–25 mm / 0–1 in | ±0.10 mm / ±0.004 in. |
| 25–75 mm / 1–3 in | ±0.15 mm / ±0.006 in |
| 75–150 mm / 3–6 in | ±0.25 mm / ±0.010 in |
| 150–300 mm / 6–12 in | ±0.40 mm / ±0.016 in |
| Over 300 mm / Over 12 in | Engineering review required |
Manufacturing Standards Overview
Understanding Manufacturing Standards
Inspection standard
Critical dimensions and acceptance requirements should be clear before production inspection expectations are set.
Change standard
Design or requirement changes after confirmation may affect cost, lead time, tooling, and production planning.
