Injection Molded Valve Bodies
A valve body looks like a solid block with holes through it. Molded in plastic it cannot be solid, and the holes cannot all point the same way. What makes a good molded valve body is how much material is taken out of the thick areas, and how the passages that cross the pull direction are formed.
Thick and hollow
Solid blocks do not mold well

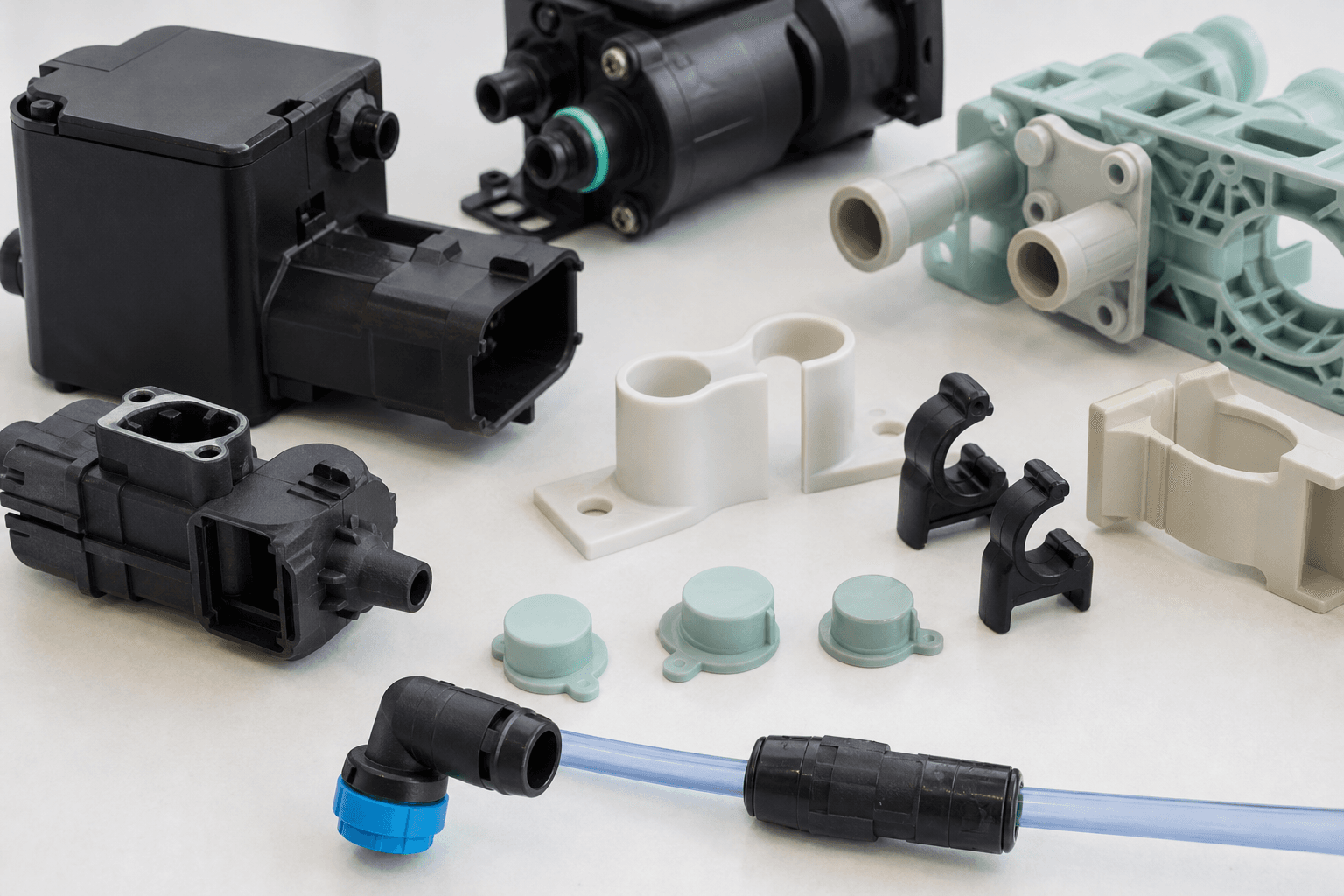

Ball valve bodies, check valve bodies, diverter bodies, and solenoid valve housings.
A machined valve body starts as a solid block and has passages drilled into it. A molded body cannot copy that. A thick section of plastic cools from the outside in, and the middle is still liquid long after the skin has frozen. As the middle shrinks it pulls material inward, leaving either a sunken outer surface or a hollow void right where the body needs its strength.
The answer is to take the material out on purpose. The body becomes a shell of fairly even section, with hollow pockets where the solid block used to be, and thin stiffening webs where load has to travel. Anything that must stay solid, such as a seal seat or a threaded port, is kept as small and local as possible so it cools at a similar rate to the shell.
Then there are the passages. A passage that runs along the direction the tool opens can be formed by a simple core. A passage that crosses that direction needs a side action: a slide or a lifter that pulls sideways before the body is pushed out. Each one leaves a parting line on the surface it forms, so the design usually tries to align as many passages as possible with the pull direction.
Seals are the last piece. Where an O-ring or a seat presses against the body, the surface has to be round, smooth, and not distorted by shrinkage from a nearby thick spot. Threaded ports are either molded with an unscrewing core , or made from a metal insert molded into the body where the joint will be tightened repeatedly.
