Molded part guide: standoffs

Injection Molded Standoffs

Standoffs set the gap between a PCB and a cover or chassis. They can snap into the board, snap into the shell, or receive a screw from below. If the posts are not the same height after molding, the board rocks and connectors misalign.

PCB mount

Parallel posts matter more than post diameter

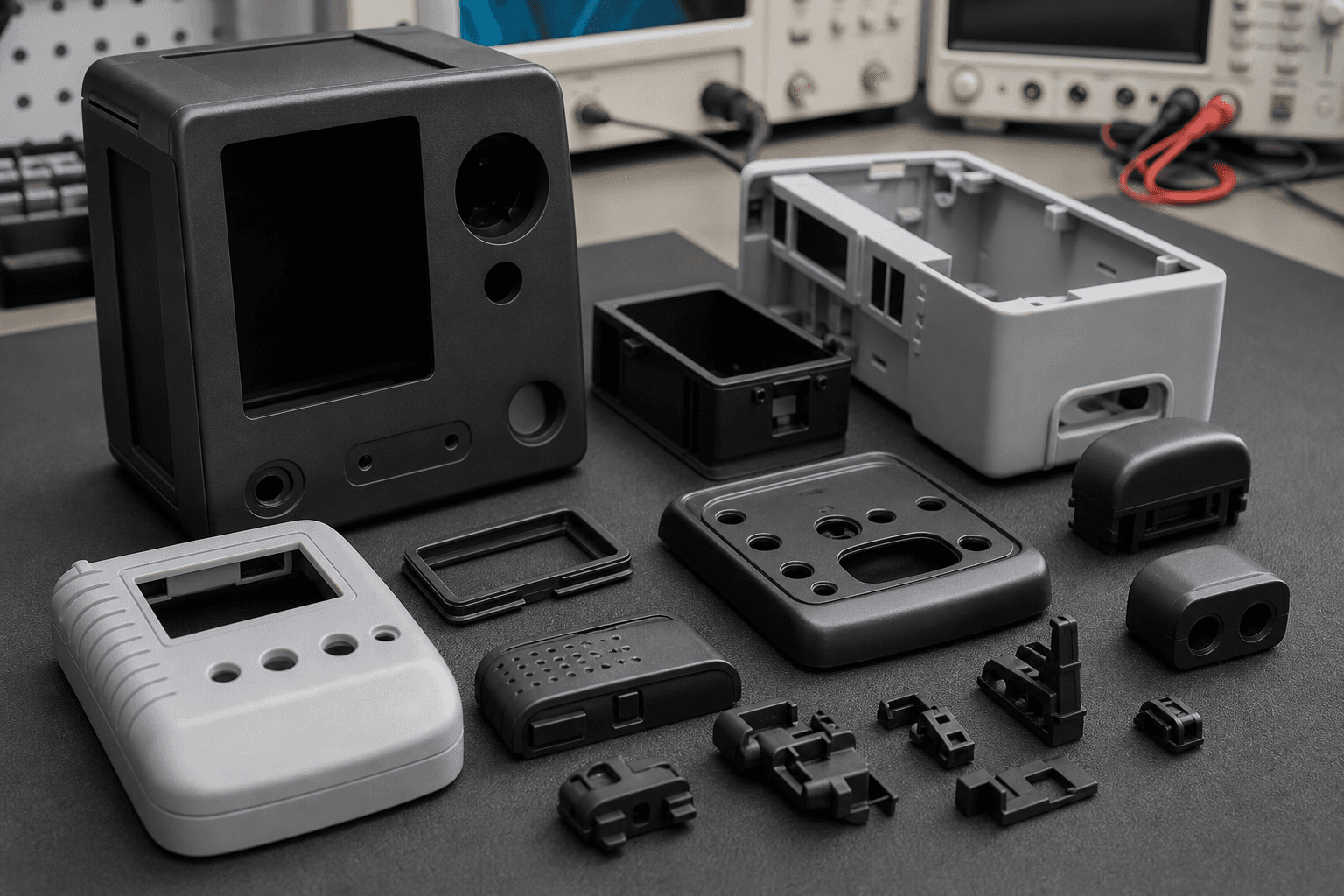

Molded standoffs are often integrated into an enclosure bottom or a separate pillar plate. Each post must match the PCB hole pattern and hold the board at a fixed height for connectors, displays, or battery clearance.

Brass and black metal threaded standoffs on gray resin pellets

Snap standoffs use a flexible barb that passes through a board hole and locks. Screw standoffs use a boss with a metal insert or self-tapping thread . Mixed patterns on one board need a clear assembly sequence.

A closed gray molded enclosure with side openings and corner latches
Related reference: electronic enclosures.

Warp on the mounting plate telegraphs into standoff height variation. Stiffen the plate with webs, balance fill symmetrically, and define which face is datum for the board.

Service tiers

Standoff service tiers and quote path

Standoffs set PCB or panel stack height. Pick the tier that matches retention method and torque, then quote with hole pattern and target stack height in notes.

TierEnvironmentWhat matters mostTypical resin routeQuote path
1 Snap standoffPCB snap-in, low pull forceHook flex and panel hole rangePA or PC snapsInstant quote; note board thickness range
2 Screw standoffThrough-board or panel screwBoss height stack and thread strippingABS or PA bossesInstant quote; material field ABS or Nylon
3 Insulated stackKeep clearance to metal chassisCreepage path and boss crackingPC or unfilled PAInstant quote; note the clearance to the chassis
4 High torque postMetal insert or self-tapping zoneInsert pull-out and post ovalizationGlass-filled PA postsUpload CAD; include insert part number if known
5 Parallelism criticalMultiple posts, tight board fitMolded-in stress and post splaySame resin as the shellFull RFQ; flag critical dims on drawing

Materials

Resin families: quick reference for quote notes

Standoffs are usually unfilled or lightly filled nylons or PC. Put target stack height and retention type in comments.

FamilyTypical use on this part typeNotes for instant quote
PA (nylon)Snap and screw postsField Nylon; say if glass filled
PCInsulating postsField PC
ABSIndoor screw bossesField ABS
Glass-filled PAHigher torque postsField glass-filled nylon

Retention

Snap post or screw-mount standoff

Snap-in post

  • Fast assembly without tools
  • Barb flex fatigue if the board is removed often
  • Hole size tolerance drives retention

Screw standoff

  • Service access with a screwdriver
  • Metal insert or self-tap thread at each post
  • Torque must not crack thin post walls

Integration

Standoffs molded into the enclosure floor

  • Posts should tie to the floor with gussets, not stick up as isolated cones
  • Keep weld lines away from barb flex zones
  • Define board datum relative to connector cutouts on the shell
  • Metal inserts at high-load posts reduce post stress
A black molded enclosure bottom with four short posts rising from the floor

Avoid these

Common design mistakes on molded standoffs

Two choices that show up as a rocking board or a connector that will not mate.

Letting the mounting plate warp, so the posts are no longer the same height. Webs and a balanced fill stiffen the plate. Name which face is the datum for the board.

Leaving each post as an isolated cone. Tie the posts to the floor with gussets. A post that only sticks up from the floor is where the board rocks.

Drawing

Standoff quote inputs

  • PCB drawing with hole diameters and pattern

  • Required board height and keep-out above and below

  • Snap or screw at each post location

  • Components that must align to shell features

  • Service cycles if snaps must release

  • Whether standoffs are on the shell or a separate plate

Keep reading

Related guides

Spacers

Tubular distance on bolts.

Spacers

Warpage

Plate warp lifts posts unevenly.

Warpage

FAQ

Questions about molded standoffs

Can standoffs be a separate plate snapped into the shell?

Yes. Send both parts and the assembly sequence so retention and height stack are reviewed together.

Our connector does not mate after molding.

Measure standoff height and pattern relative to the shell datum. Warp or shrink on the floor often shows up as connector offset before hole pattern error.

Are metal threaded standoffs available molded in?

Insert molding can capture metal standoffs. Send insert drawings and torque requirements.

Do you assemble the PCB?

No. NetProto molds plastic parts. Board installation stays with your assembly line.

When should the post be a screw instead of a snap?

When the board will be removed for service. A snap barb is flexed each time the board comes off. A screw post opens with a screwdriver. The torque still has to stay off a thin post wall.

Why are the molded posts not the same height?

The mounting plate warped, and that warp becomes a height error. Measure the posts from the shell datum. Webs and a balanced fill are what keep the floor from moving.
