Molded part guide: automotive interior trim
Injection Molded Automotive Interior Trim

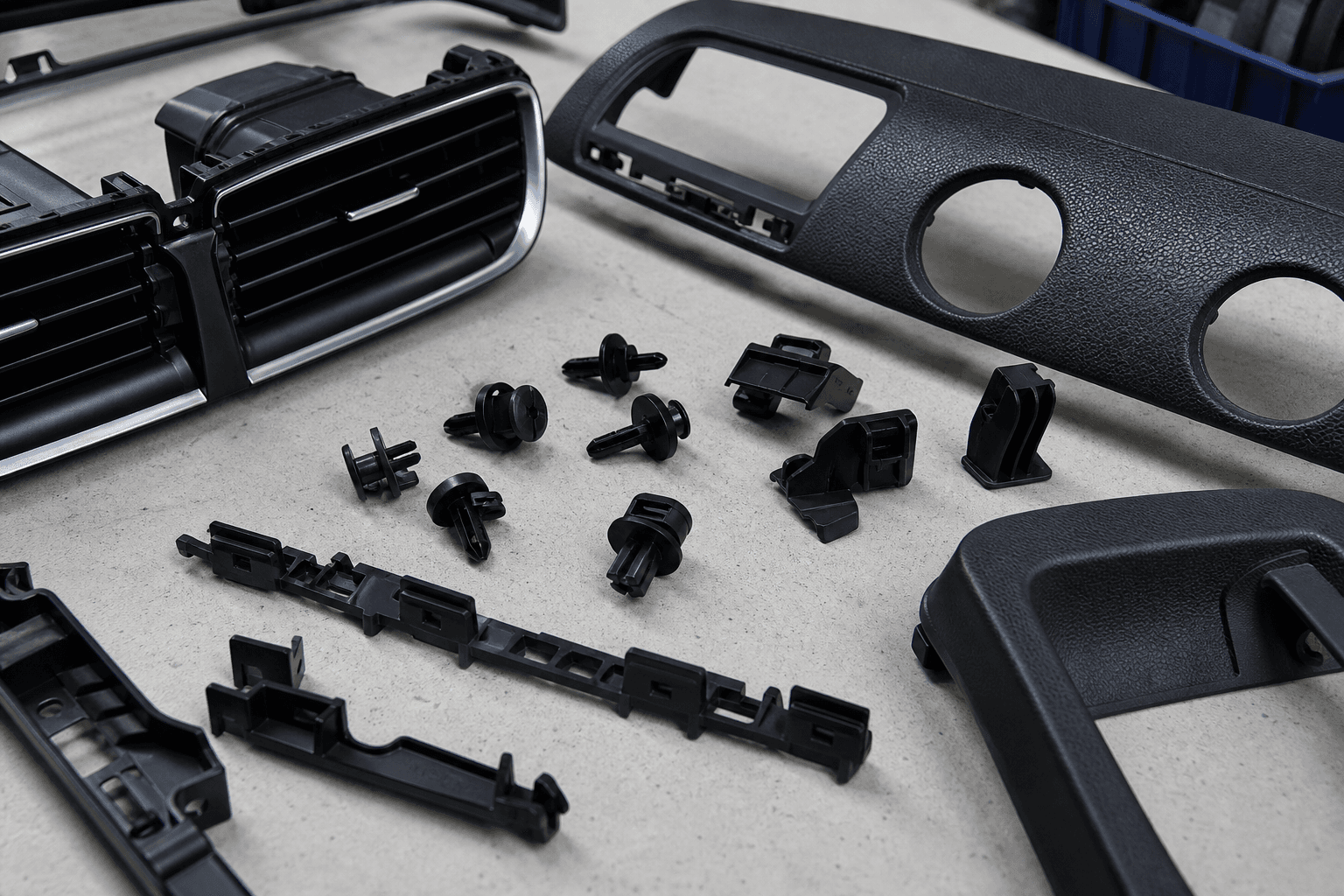

Interior trim is judged from the driver's seat. Door panels, pillar covers, console sides, and dash trim all carry a grained show face that has to look even under raking sunlight, while clip towers, screw posts, and locators on the back hold it to the car. The engineering problem is keeping the back from showing through on the front.
Show face
The back of the part shows on the front
Door trim, pillar covers, console panels, dash trim, and glove box doors.
Trim parts are mostly large, thin panels with a textured show face. The grain is etched or laser textured into the tool steel, and it hides small flow marks and light scratches. It does not hide everything. Any feature on the back that makes the wall locally thicker cools later than the wall around it, and that difference reaches the face.
The usual culprits are clip towers, screw posts, locating pins, and the junctions where stiffeners meet the wall. On a smooth part the result is a dent. On a grained part it more often shows as a patch with different gloss, because the grain is pulled slightly flatter where the plastic shrank away from the steel. Under raking light that patch is obvious from the seat.
The fixes are on the back. Towers tie into the wall through a thin base or sit on a short standoff, centers are cored, and stiffeners stay thinner than the wall they support. The gate goes on a hidden edge or behind a flange, so flow marks and the gloss change near the gate land where nobody looks.
Grain and draft are chosen together. A deep grain on a side wall needs more draft, or the texture drags on the steel during ejection and leaves shiny scuffs. The resin matters too: talc-filled polypropylene is common for large panels, while PC/ABS and ABS suit smaller trim with tighter cosmetic demands. Clip fits and locators decide whether the finished panel rattles.
Features
Trim features and what each one does
Most of these sit on the back, and each one can affect the face.
| Feature | Purpose | Design note |
|---|---|---|
| Grained show face | Hides flow marks and light scratches | Deeper grain needs more side wall draft |
| Clip towers | Hold the trim to the door or body | Thin base, cored center, or short standoff |
| Locating pins | Set gap and flush to neighbors | One round and one slotted locator |
| Gate location | Decides where flow marks land | Hidden edge or behind a flange |
| Edge returns | Finished look at visible edges | Return flange so no raw parting line shows |
Service tiers
Interior trim service tiers and quote path
Part focus: Grain read-through, clip towers, talc PP vs PC/ABS. Upload CAD with critical fits and environment in notes when not modeled.
| Tier | Environment | What matters most | Typical molded route | Quote path |
|---|---|---|---|---|
| 1 Show face | Grain hides small marks | Deep grain needs more draft | Match grain depth to the side wall draft | Upload CAD; note the grain |
| 2 Clip towers | Hold the panel on | A thick base reads through as gloss | Thin base, cored center, or a short standoff | Instant quote; note the towers |
| 3 Locators | Set gap and flush | A loose fit rattles | One round pin and one slotted pin | Upload CAD |
| 4 Gate | Flow marks near the gate | They show if the gate is on the face | Hidden edge or behind a flange | Instant quote; note the gate |
| 5 Resin | Large panels or smaller trim | Talc PP and PC/ABS are not the same panel | Name talc PP, PC/ABS, or ABS | Instant quote; name the resin |
Materials
Resin families: quick reference for quote notes
One primary family per line item. Put commercial grade, fillers, and environment filters in comments.
| Family | Typical use on this part type | Notes for instant quote |
|---|---|---|
| PC/ABS | Smaller trim with tighter cosmetics | Field PC/ABS |
| ABS | Smaller trim with tighter cosmetics | Field ABS |
| PP | Large panels when the drawing names talc-filled PP | Field PP; note talc |
Gloss
Sink and gloss read-through on a grained face
Features behind the show face appear on it, even through texture.
- Thick spots behind the face cool last and pull the surface in as they shrink
- On grain, a shallow sink shows as a patch of different gloss rather than a dent
- Clip towers tied in with a thin base and a cored center keep the face even
- Texture depth is chosen with side wall draft so the grain is not scuffed on ejection
Color
Molded-in color or painted trim
Both are common in interiors. The choice changes the tool, the resin, and the process.
Painted
- One paint covers parts in different resins, so colors match
- Gloss level comes from the paint rather than the steel
- Adds a process step, and a chip shows the base resin
Avoid these
Common design mistakes on interior trim
Two choices that print the back of the panel onto the show face, or scuff the grain.
A clip tower or screw post tied straight into the show wall. The thick spot cools later, and the grain goes flatter there, so a gloss patch shows under raking light. Use a thin base, a cored center, or a short standoff.
A deep grain on a side wall that does not have the draft for it. The texture drags during ejection and leaves shiny scuffs. Set the grain depth and the draft together.
Drawing
What to send with interior trim
The show surface and its neighbors drive most of the design decisions.
Trim CAD with the show surfaces marked
Grain or texture callout and gloss target
Mating parts, clip holes, and gap and flush targets
Resin grade, color, and any emission or odor spec you follow
Sun exposure and temperature range at the location in the vehicle
Expected annual volume
