A soft grip that peels at the edge is one of the most visible failures a product can have. The causes are well understood, and most are settled in the choice of materials and the design of the bond line.
How the bond works
Reliable designs rarely depend on only one.

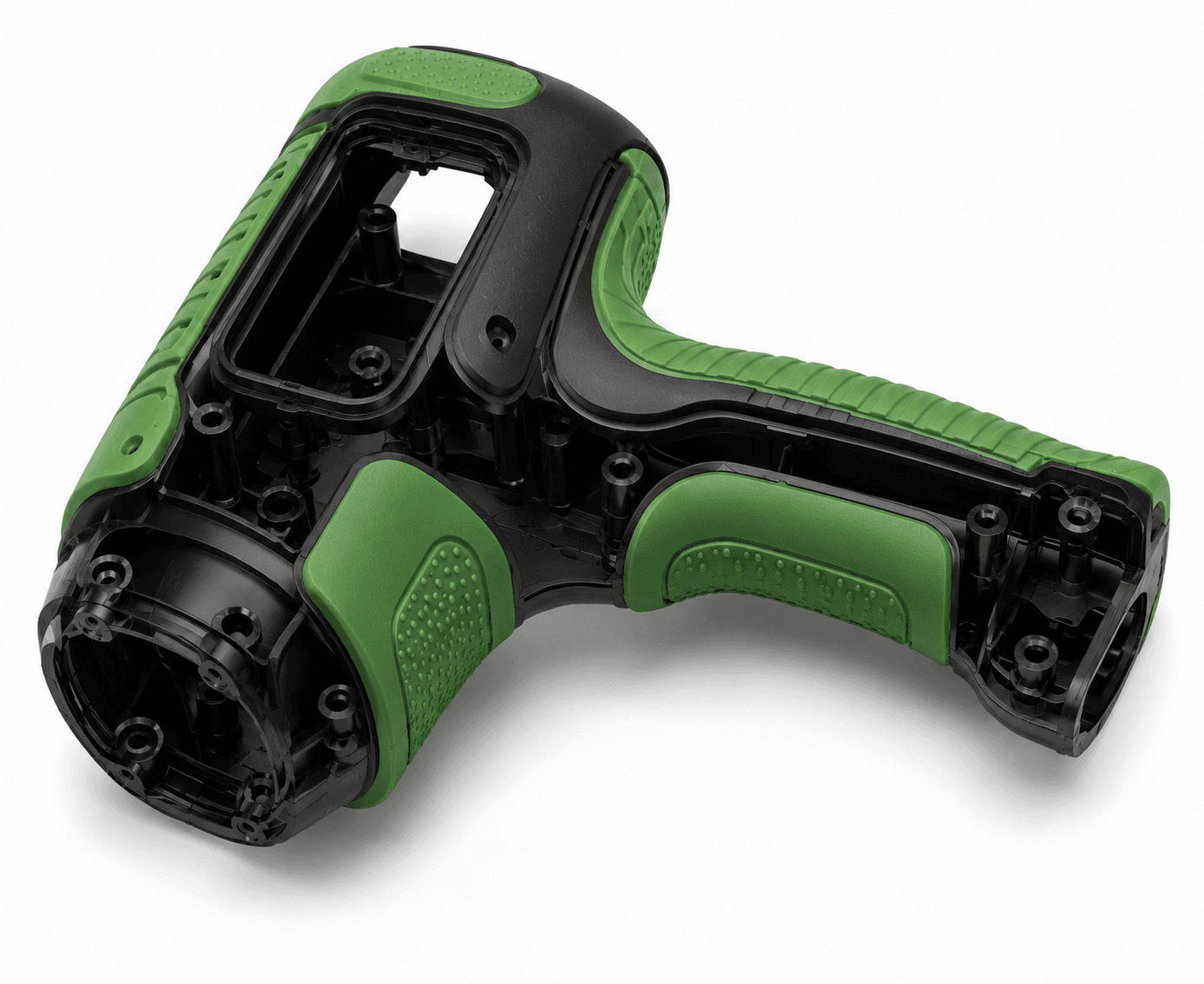

An overmolded layer holds to its substrate in two ways. Chemical adhesion forms when the overmold material and the substrate are compatible and the hot melt wets the substrate surface, so the two fuse at the interface. Mechanical interlock forms when the overmold flows through holes, around edges, or into undercuts and grooves, so it is held by geometry whatever the adhesion.
Most bond failures happen when a design relies on adhesion alone and something weakens it: a material pair that is only marginally compatible, a substrate that is too cold or not clean, or a thin overmold edge that cools before it can bond. The fix is usually to strengthen the adhesion and add an interlock, not one or the other.
Diagnosis
Start with the pattern of failure. Where and how the layer lets go points to the cause.
| Symptom | Likely cause | Typical fix |
|---|---|---|
| Overmold peels off cleanly everywhere | Incompatible material pair, so no chemical bond forms | Choose an overmold grade formulated for that substrate, or design for full mechanical interlock |
| Bond is good on some parts and poor on others | Substrate temperature or cleanliness varies between parts | Control the time between shots, keep substrates clean, and avoid mold release on bond faces |
| Edges lift while the center holds | Thin feathered edges cool early, and shrinkage pulls them up | End the overmold in a groove or step, and avoid tapering it to nothing |
| Poor bond far from the gate | Melt has cooled by the time it reaches that area | Move or add gates, raise melt and mold temperature within the grade guidance, and review wall sections |
| Bond weakens after cleaning or aging | Chemical attack or stress at the interface | Test with the real cleaners and conditions, and add interlocks at the edges |
| Bubbles or voids at the interface | Moisture in a hygroscopic substrate, or trapped air | Dry the substrate resin properly and vent the overmold cavity |
The biggest lever
No process setting rescues an incompatible pair.
Thermoplastic elastomers are sold in grades formulated to bond to specific substrates. A grade designed for polypropylene may bond poorly or not at all to polycarbonate or nylon, and grades for engineering resins are a distinct family. The resin supplier's bonding guidance is the first document to check, and it should name your exact substrate.
Substrate additives matter too. Glass fibers, flame retardants, lubricants, and some pigments can reduce adhesion. If the substrate grade changes, even to a close equivalent, confirm the bond again. The same applies to the overmold color: a new colorant can change bond behavior.
Design details
These work whatever the adhesion, and they protect the edges where peeling starts.
Terminate overmold edges in a groove or against a step in the substrate, never as a thin feather edge
Add through holes or undercuts where the overmold can flow through and lock behind the substrate
Keep the overmold wall reasonably even, so it fills and bonds uniformly
Place gates so flow reaches bond edges while the melt is still hot
Give the substrate enough stiffness that the overmold shot does not deflect it
Design shutoffs on the substrate so the overmold stops cleanly without flashing
Round the substrate corners under the overmold to reduce stress at the interface
Avoid grip edges where a thumb or tool naturally catches and levers the layer
Process route
The route changes how warm and clean the substrate is when the overmold arrives.
Proving the bond
A bond that passes a thumb test on day one can still fail in the field.
Decide whether the layer should tear before it peels, or simply resist a stated peel effort.
Peel strips of overmold from sample parts and note whether the failure is at the interface or within the elastomer.
Try to lift each edge, since that is where field failures start.
Repeat after heat aging and contact with the cleaners, oils, or sweat the product will meet.
Sample parts from the start, middle, and end of a run to catch process variation.
Retest when resin grade, color, supplier, or process route changes.
FAQ
Sometimes, but it adds a process step and a new source of variation. Changing to a compatible overmold grade and adding mechanical interlocks is usually more robust.
Residual stress from shrinkage, heat cycling, and chemical exposure all work on the interface over time. A marginal bond that passes when new can let go at the edges after aging.
Yes. Very thin sections cool quickly and may not stay hot enough to bond, especially far from the gate. Even, moderate sections bond more consistently.
No. Delamination within one material is a molding defect caused by contamination or incompatible blends. Overmold bond failure is separation between two different materials at their interface.
