Molded in Inserts vs Post-Install: RFQ Checklist

Molded in inserts are threaded or non-threaded metal hardware placed in the injection mold cavity so molten plastic forms around them during the shot, which removes a separate installation step on the line. Post-install methods such as heat staking, ultrasonic insertion, and press-fitting add the hardware after the plastic part is fully molded. This checklist helps procurement and design teams state the insert path clearly on the RFQ so quoting, DFM, and T1 acceptance stay aligned.

What Are Molded-In Inserts?

Molded-in inserts are load-bearing or fastening elements held in the mold before each cycle so the polymer encapsulates knurls, barbs, or shanks according to the insert vendor drawing. The molded part leaves the press with the insert already seated, which is why assembly BOMs for housings, brackets, and connector bodies often drop one station when this path is chosen. That integration trades mold complexity, careful shutoff design, and insert handling at the press for fewer secondary operations downstream.

Post-install inserts use the same brass, stainless, or steel hardware families but enter the part after molding through thermal, ultrasonic, or mechanical stake and press processes on the assembly line. The mold stays simpler and cycle time per shot is often lower because the cavity does not hold loose inserts, yet labor or equipment cost moves to assembly. Neither path is universally cheaper; volume, insert count per part, quality gates, and how early you freeze hardware specs drive the decision. Request a quote on your CAD to see the cost crossover for your geometry.

For NetProto process context and typical applications, see insert molding. This article does not repeat a full molded-in versus post-install comparison table; it focuses on RFQ fields buyers should fill in before steel is cut. Use the comparison page linked under Related Process Guides for pairwise tradeoffs.

Key Facts

  1. Molded-in inserts embed metal directly in the plastic during the shot, which eliminates a secondary press or stake operation when that station is otherwise required.
  2. Post-install inserts keep the cavity simpler, often shorten mold cycle time, and let hardware choices slip later in the program if product management has not frozen a vendor part number.
  3. Insert orientation, plating or surface condition, and whether inserts are customer-supplied or molder-supplied must appear explicitly on the RFQ and on controlled drawings.
  4. Molded threads formed entirely in plastic are a third path; compare thread strength and wear tradeoffs on molded threads vs inserts rather than mixing that decision into insert hardware specs.
  5. Pull-out force, torque limits, and insertion force thresholds are application-specific and depend on substrate, insert geometry, and the customer test protocol; do not assume catalog defaults on a molding quote.
  6. Shutoff between steel and insert metal defines flash risk; DFM review should call out faces that must stay clean for sealing or grounding before tooling release.
  7. Regulated programs for medical, dental, or industrial equipment can use insert molding when requirements are defined on the RFQ; route detailed compliance questions through sales rather than inferring certifications in the drawing pack.

Related Process Guides

Use the site comparison pages when you need a structured decision rather than RFQ field names alone. For embedding hardware during molding versus adding it afterward, read insert molding vs post mold assembly. For metal inserts versus threads formed in the plastic, read molded threads vs inserts. For retention, shutoff, and boss design before tooling, use the molded-in inserts design guide. Keep this RFQ document focused on what to attach and what T1 must prove; let those pages carry the pairwise tradeoff tables.

RFQ Checklist

Copy this checklist into your RFQ template so engineering and the molder parse the same fields:

  1. List each insert type with thread specification (if threaded), material (brass, stainless steel, steel, helical coil, etc.), and manufacturer part number when fixed.
  2. State supply chain ownership: customer-supplied inserts vs molder-supplied inserts, including packaging, lot traceability, and who absorbs scrap from misfeeds at the press.
  3. Mark orientation for every insert and identify the face that must remain free of flash or plastic encroachment for mates, seals, or electrical contact.
  4. Declare alternates: note whether post-install (heat stake, ultrasonic, press-fit) remains acceptable if DFM recommends a mold change or if insert availability slips.
  5. Upload CAD with each insert modeled as a separate solid body or clearly identified volume so automated DFM and manual review can check shutoff, venting, and ejection without guesswork.

Add resin grade, color, and annual volume on the same package so insert retention is reviewed in the context of shrink and fill behavior, not in isolation. If the program includes overmolded seals or second-shot material around an insert, see overmolding plastic on metal for seal integration and cross-reference material compatibility on the RFQ so reviewers treat the stack as one molded system. When tolerance bands matter for insert flushness or boss location, reference the commercial tolerance table published on the manufacturing standards page and state which SPI surface finish grades for cosmetic faces apply versus functional datums.

What T1 Should Prove

T1 is the witness lot where insert strategy meets reality. Buyers should write acceptance criteria on the RFQ instead of relying on generic molding samples.

Insert Flushness

Insert flushness relative to the plastic surface should be measured at the datum called on the drawing, with direction of measurement noted so inspectors repeat the same gauge setup at production start.

Flash Condition

Flash condition at the shutoff interface between plastic and insert matters for grounding paths, O-ring grooves, and thread engagement. Call out cosmetic face (A-side) vs shutoff contact surfaces separately, and specify maximum acceptable flash width or require "no flash" on critical faces if the mate is metal-to-metal.

Mechanical Witness Tests

Mechanical witness tests belong to the customer when pull, push-out, or torque checks define product safety. State sample size, fixture type, and pass-fail limits on the RFQ; the molder can witness and record results without substituting internal defaults for your protocol.

Photo Documentation

Photo documentation helps remote teams: request a clear image of the insert-side face showing shutoff condition and insert seating when travel or time zones limit in-person T1 review.

NetProto builds one hardened steel injection mold per quoted program and runs production on that tool for the life of the part, with DFM feedback before tooling release and online project tracking after quote approval. Insert programs follow the same flow; complexity shows up in mold actions and insert loading, not in a separate tooling tier menu. Include insert count and loading method in your RFQ summary so quoting can account for handling time. If you are comparing an interim tool elsewhere, read soft tooling vs hardened steel for insert molding programs as a comparison, not as a NetProto tool menu.

Visual reference

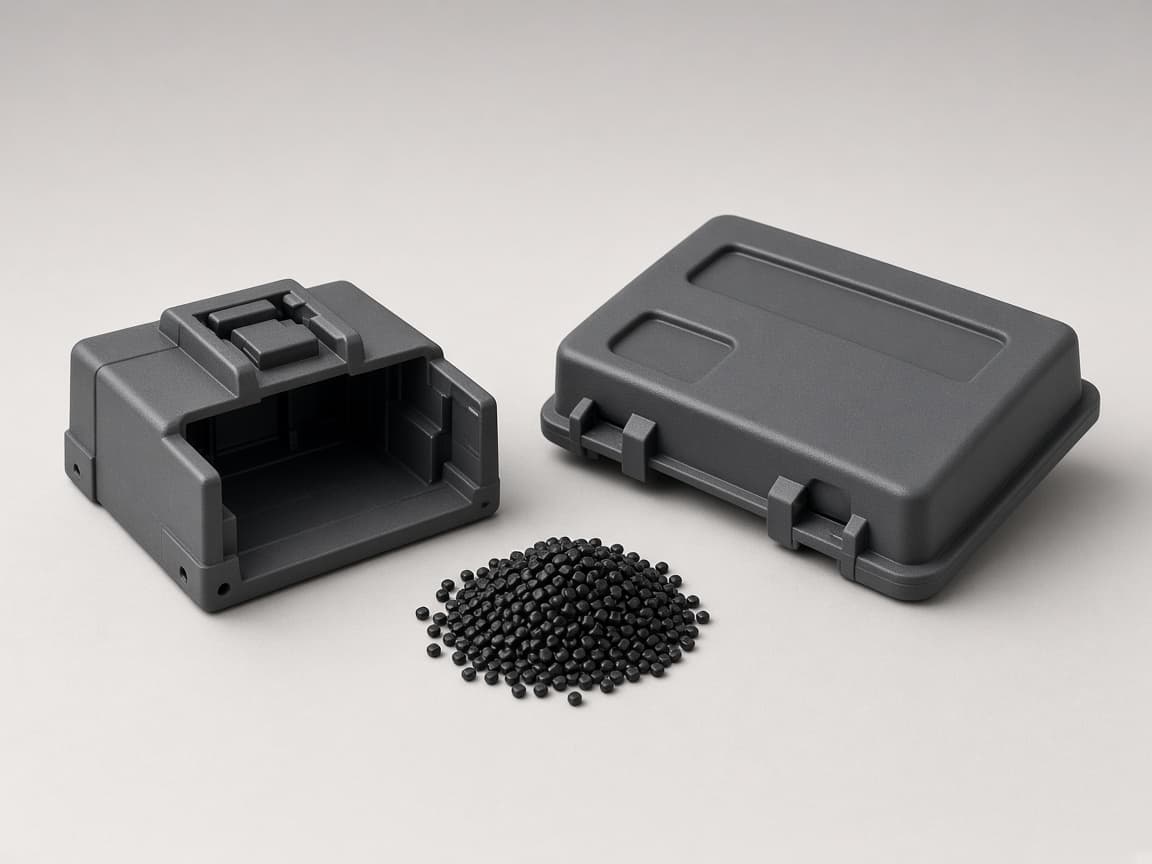

Molded in inserts example: black EMI connector housing and gray enclosure lid

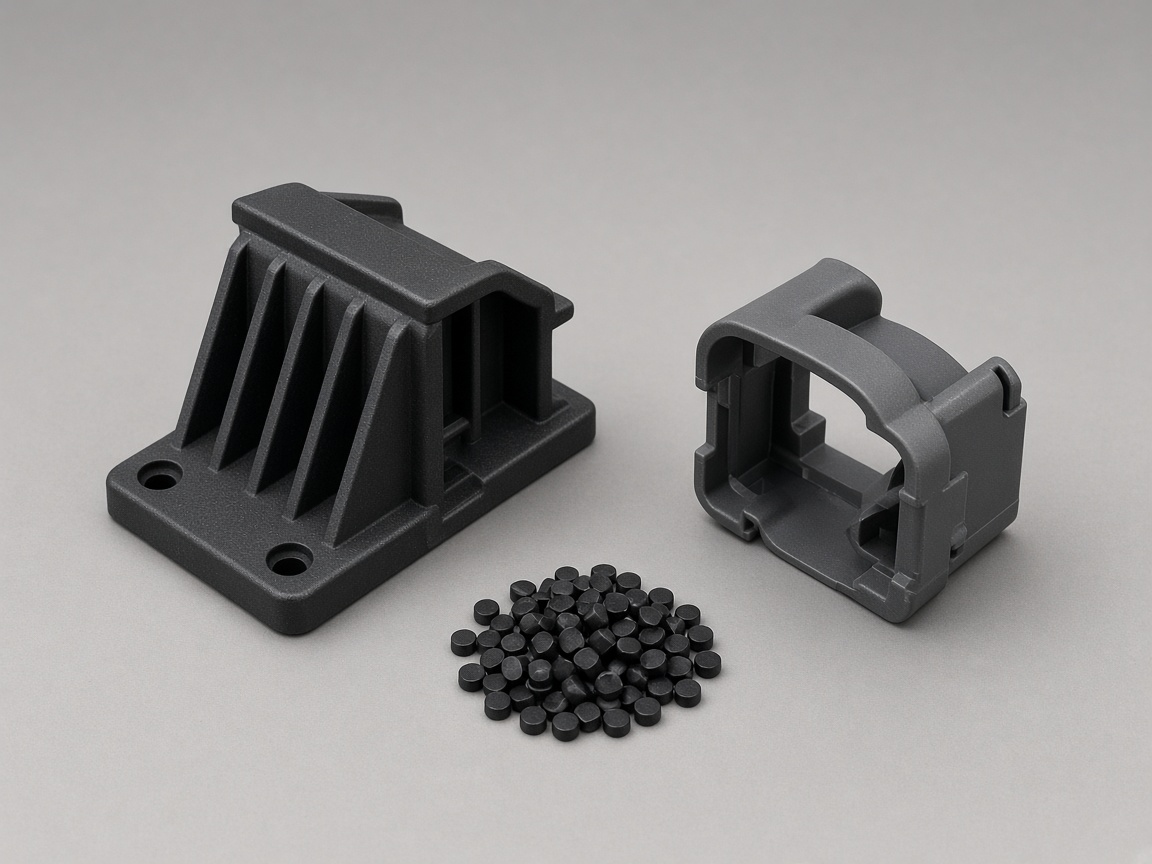

Gray glass-filled nylon housing and ribbed bracket clip for insert molding applications

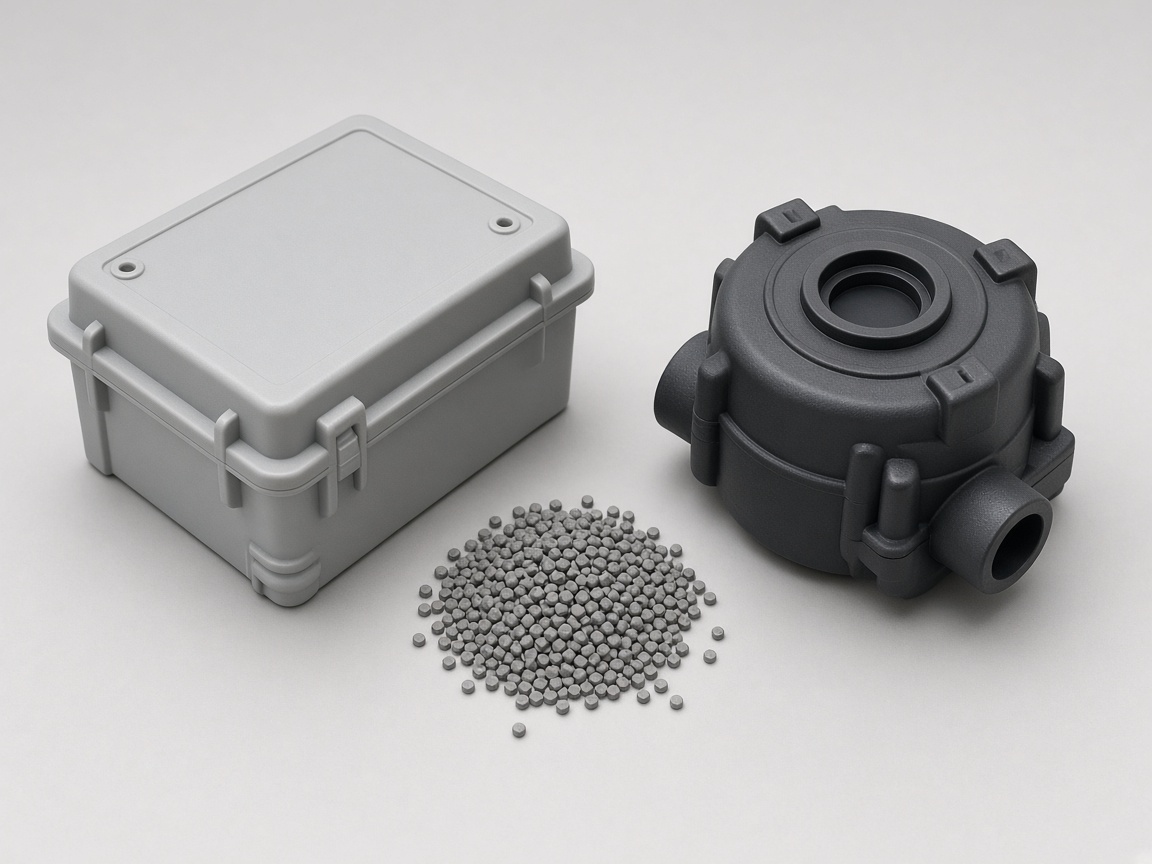

Gray PPO meter enclosure and housing for insert molding reference

Frequently Asked Questions

What is the difference between molded-in inserts and insert molding?

Molded in inserts means metal hardware is placed in the cavity before the shot so plastic forms around it. Insert molding is the broader process family and can also cover encapsulating non-metal components. This article covers the hardware path. See [insert molding](/insert-molding) for the full process scope.

What types of inserts can be molded in: brass, steel, stainless, helicals?

Brass and stainless threaded inserts, knurled bodies, bushings, pins, and helical coils are commonly molded in when the mold can retain them during fill. Name the vendor drawing or standard on the RFQ so DFM can check boss walls and melt impingement. Plated or specialty alloys may need trials to confirm shutoff and adhesion.

What surface finish should I specify on the plastic around molded-in inserts?

Specify finish per face, not as one global callout. Cosmetic faces away from the insert shutoff can use [SPI surface finish grades for cosmetic faces](/glossary/spi-b1-finish). Faces that contact the insert shutoff are usually judged on flash and seating, not on a polish grade.

How does insert molding affect cycle time compared with standard injection molding?

Insert loading at the press can add time versus a resin-only shot. The delta depends on insert count, handling method, and part geometry. State insert count and loading method on the RFQ so quoting can review handling time; do not assume a published cycle adder.

Is insert molding cost-effective for low-volume or prototype programs?

Cost depends on insert count, mold actions, and parts needed from the same hardened steel tool. NetProto accepts quotes with no minimum order quantity, so small first orders are possible when steel tooling fits the program. Simpler post-install paths can win at very low counts; molded in inserts often pay back at higher repeat volume by skipping assembly stations. Upload CAD for priced scenarios.

Who should supply the inserts: the customer or the molder?

Either party can supply inserts when the RFQ states ownership, packaging, and traceability. Customer supply fits locked part numbers on regulated devices; molder supply simplifies logistics for standard brass inserts. Specify who replaces scrap from press misfeeds to avoid quote revisions after DFM.

Can I switch from molded-in inserts to post-install later in the same tool?

Changing after steel is cut usually requires mold modification because shutoffs and boss geometry differ between encapsulated metal and post-mold insertion features. Approved alternates must be designed upfront on the drawing, not assumed as a silent fallback. Plan an engineering change review before locking T1.

What does a search for "prototype insert molding" actually mean in practice?

It usually means validating boss design, retention, or assembly flow before high-volume production, not a separate soft-tool service category. One hardened steel mold can still support pilot builds while quality plans mature. Compare program cost and timing through an instant CAD quote instead of treating prototype as a distinct tooling tier.
