Micro Injection Molding: When a Small Steel Tool Is Enough
Micro injection molding is a specialized branch of plastic injection molding focused on extremely small thermoplastic parts, often where individual features or overall part mass sit at the edge of what standard presses control comfortably. In industry discussions, teams often describe very small parts with tiny functional features as "micro," but those labels are starting points for a tooling conversation, not a pass/fail gate on their own. Success depends on shot control, runner-to-part ratio, gate design, and whether inspection and handling need a dedicated production cell.
If you are deciding whether your program belongs on micro equipment or on a compact conventional hardened steel tool, this guide is the go/no-go checklist. For press sizes, runner economics, and process detail, see Micro Injection Molding: When the Runner Outweighs the Part.
What Is Micro Injection Molding?
Micro injection molding is the production of very small plastic components where normal injection molding assumptions break down: the usable shot is a tiny fraction of barrel capacity, the runner may weigh more than the part, and flash or a short shot on one cavity can scrap an entire assembly. The process still uses thermoplastic melt, a steel mold, and controlled packing, but machine resolution, screw design, valve gates, and automation are chosen to hold shot weight and dimensional repeatability at a scale standard equipment cannot reliably hold.

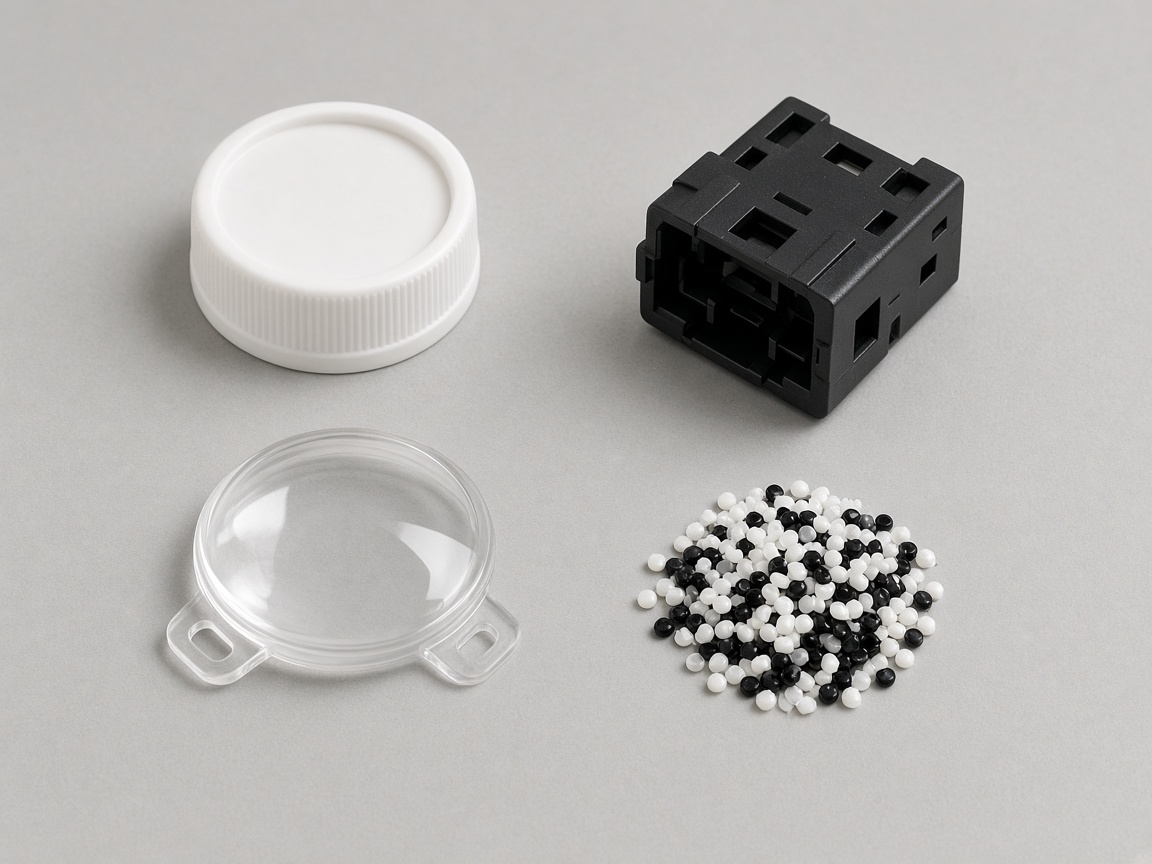

Engineers usually arrive at the topic from precision connectors, sensor housings, wearable details, or regulated device components where mating surfaces and seal lips must stay consistent lot to lot. The question is not "Is my CAD small?" but "Does my geometry, material, and quality plan force micro-scale process control?" When the answer is yes, micro-capable tooling and handling often dominate total cost more than cycle time. When the answer is no, a small part on a conventional tool can be the faster path to production.
Key Facts
- Micro molding is a fit-driven decision, not a buzzword you apply to every tiny component. Part envelope, wall sections, gate style, and inspection method together determine whether micro equipment is justified.
- When the runner system weighs more than the part, material waste, shear history, and shot-to-shot consistency become the primary program risks. That imbalance is a common signal to review micro-specific runner and gate strategies on the micro molding process page.
- Small features can often be molded in conventional tools when wall thickness, flow length, and draft still follow standard DFM. Many "small" housings fill on general-purpose presses if the shot size remains a reasonable fraction of barrel capacity.
- Inspection and automated handling frequently cost more than extra cycle time on micro equipment. Vision, fixturing, and non-contact metrology can drive capital and validation scope before the mold steel is cut.
- Define critical-to-function features on the RFQ instead of labeling the whole drawing "micro." Molders need to know which dimensions gate product performance, not which marketing term sounded precise.
- Thin-wall and high-flow material principles still apply even when parts are tiny. Use thin wall design guidance and high-flow grades for thin-wall molding for fill and warp tradeoffs; do not assume micro automatically requires an exotic resin grade.
Micro vs Small-Part Molding: The Real Decision
The useful split is not "tiny CAD" versus "normal CAD." It is whether runner-to-part ratio, shot control, and inspection force a dedicated micro process window, or whether a small conventional hardened steel tool can hold the features you care about. The next two sections walk both sides before you write "micro" on the RFQ.
When Micro Equipment Actually Matters
Micro-capable cells earn their place when geometry, quality limits, or downstream assembly tolerance cannot tolerate the variation a standard small-shot setup produces. Three patterns show up often in RFQs from North American product teams.
First, sub-millimeter functional features, extreme aspect ratios, or deep micro-scale ribs can push fill, venting, and ejection beyond what a general press reproduces shot after shot. Second, flash and short-shot sensitivity rises when a few milligrams of material decide whether a seal, latch, or optical window works; one bad cavity can reject a sub-assembly worth far more than the polymer. Third, medical device, precision connector, and sensor programs may need controlled handling, dedicated automation, and inspection plans scoped on the RFQ. NetProto supports regulated programs when requirements are defined upfront; route detailed compliance questions through sales rather than assuming certification language in marketing copy.
CAD screenshot checklist: signals micro equipment may be required
Use this table against your latest revision before you lock tooling scope.
| Signal on your CAD / drawing | What it implies | Action |
|---|---|---|
| Smallest functional feature is hard to measure with calipers on the bench | Metrology and fixturing may need a micro-oriented line | Specify inspection method on the RFQ |
| Runner volume in a simple sprue-and-runner layout exceeds part volume | Shot consistency and material cost dominate | Ask for runner optimization and gate type review |
| Flow path length vs minimum wall section looks like a thin-wall risk | Fill balance matters more than press tonnage | Cross-check thin wall injection molding vs micro |
| Assembly rejects if flash exceeds a visual threshold on a seal lip | Process window is narrow | Flag flash-sensitive surfaces as critical and note cosmetic face vs core side |
| Part must mate with inserts, LSR, or overmolded seals | Stack-up drives tolerance | Link insert molding or overmolding requirements in the same package |
| Automated pick-and-place is required at high cadence | Handling can exceed molding cost | Describe automation and reject criteria |
Process routing: If your debate is fill length and wall section rather than shot weight alone, start with thin wall design and thin wall molding process notes. If runner mass and micro shot control are the core issue, prioritize the micro molding spoke. For resin choice on connector bodies, see best plastic for electronic connector housings.
When a Small Conventional Tool Is Enough
Not every small plastic part belongs on a micro line. A part can look miniature on screen yet still mold cleanly on a standard hardened steel tool when the process window is forgiving.
Consider a conventional tool sufficient when the projected shot size remains a normal fraction of the press barrel capacity, so the machine can plasticize and measure the charge without operating at the bottom of its range. Gate locations and flow paths should respect the same DFM rules you would use on a larger housing: balanced fill, adequate venting, and draft that supports ejection without tearing thin edges.
Wall sections and flow lengths should align with thin wall design principles rather than requiring specialty screw profiles. Cosmetic surfaces should be achievable with standard SPI finish callouts or VDI textures tied to manufacturing standards commercial tolerance bands, measured with equipment your quality plan already owns.

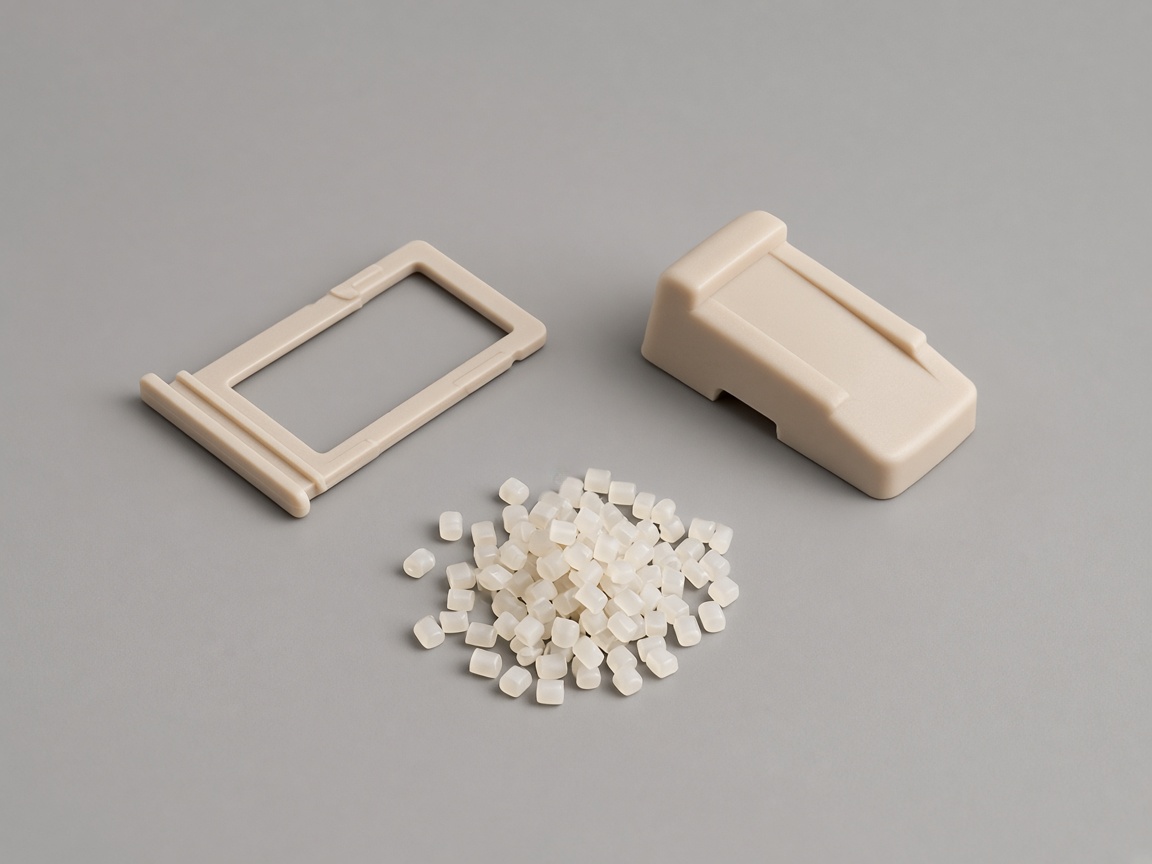

Teams prototyping connector families or sensor brackets sometimes discover that multi-cavity or family tooling on conventional equipment meets volume needs without micro cells. Cavitation and layout are program-specific; the tradeoff is balancing output against mold complexity and inspection load, not picking a tier from a menu. For how family layouts differ from separate tools, see family mold vs multi-cavity tooling explained.
NetProto builds one hardened steel injection mold per program and runs it for repeat production, with no minimum order quantity on parts once the tool is released. That model fits many small-but-not-micro programs where you want DFM feedback and pricing from a CAD upload without committing to a dedicated micro line prematurely.
Micro Molding RFQ Checklist
Suppliers cannot quote ambiguity. Replace a single "micro molding" flag with evidence they can map to tooling, gating, and validation.
- Identify the smallest functional feature and explain its role in performance (seal, latch, optical aperture, electrical standoff, drug-path boundary, and so on). One sentence on failure mode beats ten adjectives.
- Specify the inspection method and equipment you plan at T1 sampling (optical comparator, CMM, vision system, go/no-go fixtures). If you do not know yet, say what accuracy you need and let DFM review propose a plan.
- Note insert molding, overmolding, or mating surfaces that drive tolerance stack-up. Include counterpart CAD or datum structure when assemblies reject on micro flash.
- Use "micro" as a question for the molder, not a self-imposed label when you are uncertain. Ask whether runner-to-part ratio or shot weight pushes the program toward micro equipment.
- Upload CAD for DFM review before you freeze tooling scope. NetProto's instant quote platform returns manufacturability feedback and pricing tied to geometry so you can compare conventional vs micro-oriented options with data instead of assumptions.

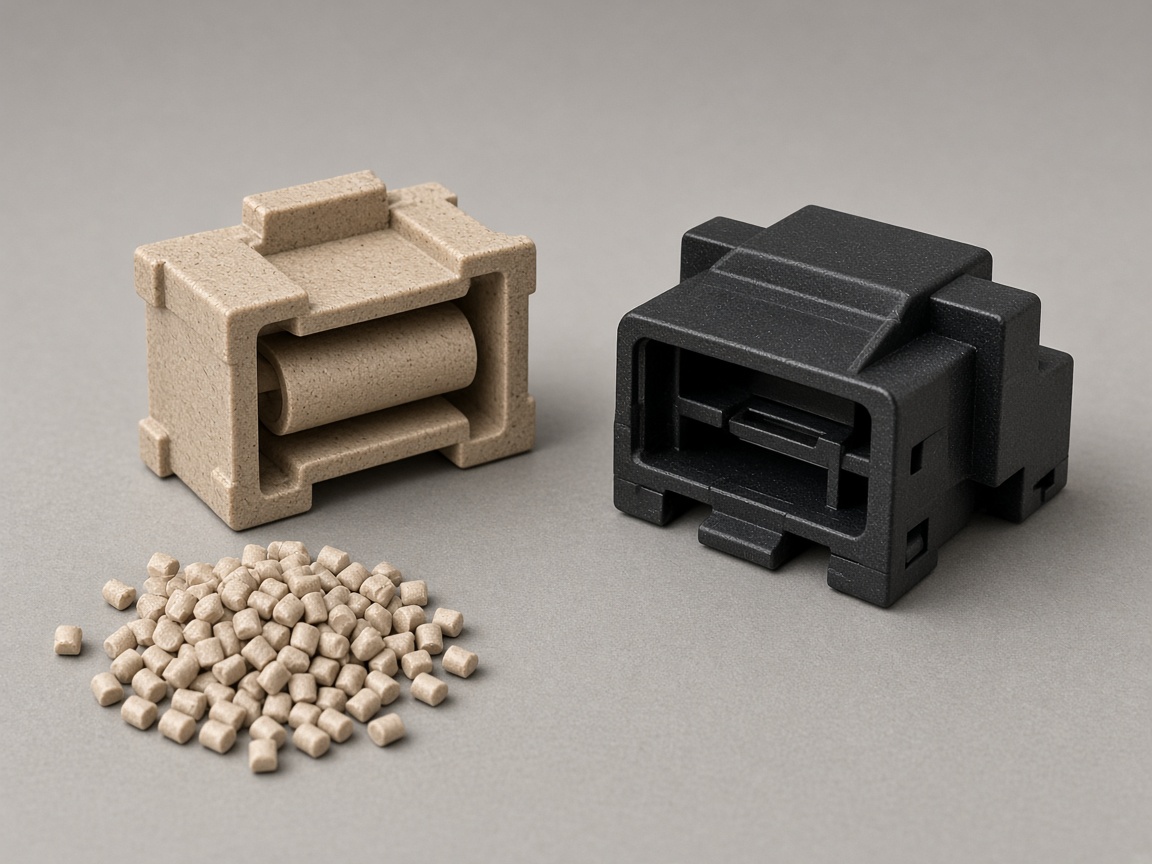

Attach material intent even if resin is not final. High-flow grades may solve fill without micro hardware; glass-filled grades may tighten warp but change surface and wear. Reference your target environment (temperature, chemicals, UV) so material guides stay honest.
